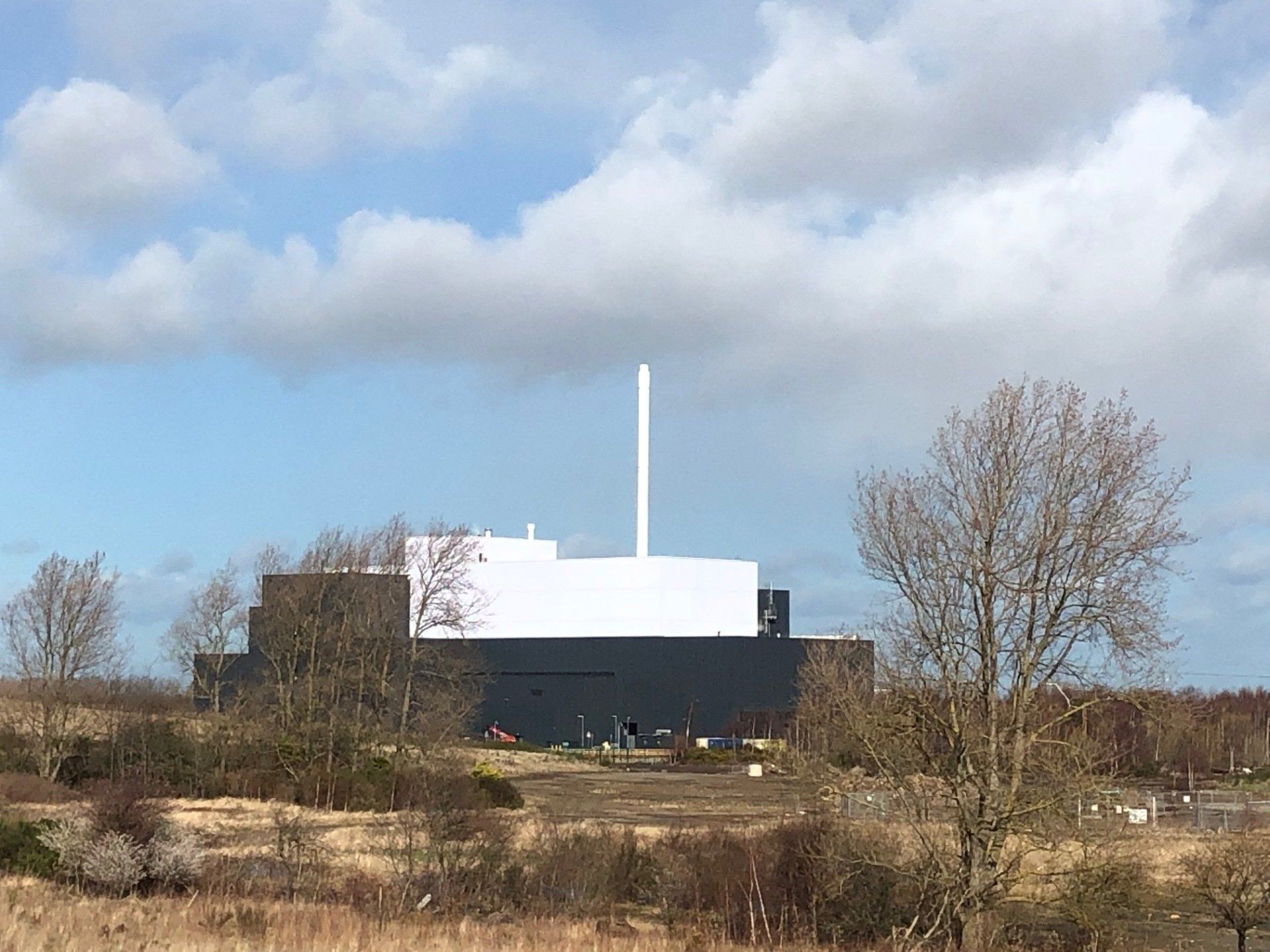

Millerhill RERC, Edinburgh

Bespoke Paroc and Rodeca Wall Cladding with Standing Seam SF500 Roof for Energy from Waste Facility

SCF were responsible for the design, procurement and site management of the External Wall Cladding, Secret Fix Roof System, Internal Firewalls and Internal Dust Walls to the Edinburgh Millerhill RERC. The bespoke cladding substrates and heavily engineered support structure presented a huge challenge in order to meet thermal, acoustic and aesthetic constraints. However the finished product is a very neat installation to a high quality standard.

Roofing and Cladding Package inclusive of Internal Dustwall and Firewall

Client: FCC Environment

Main Contractor: Hitatchi Zosen-Inova

Architect: Weedon Architects

Engineer: Royal Haskoning DHV

Steel Contractor: Peers


Project Value

Roofing and Cladding Contract Value: Circa £3m

Firewall Variation: Circa £175K

Dust Wall Variation: Circa £25K

Bale Store Building Variation: Circa £200K

Building Height Implications

Building Height: 42m


Access Strategy:

- Low Level MEWPS and Cherry Pickers

- High Level Cradle Access

- On Roof Access by Aluminium Tower

Bespoke External Cladding

Due to the project requirements for:


- Thermal Performance

- Acoustic Performance

- Fire Performance

- Aesthetic Requirements from Planning Conditions


The building required a bespoke wall cladding solution. This was developed with the use of a Euroclad 19/1000 Liner Profile which provided internal continuity. A bespoke engineered subframe was introduced to support the Paroc Panels to meet the aesthetic requirements. The Rodeca posed more of a challenge due to the Fire Performance Implications and therefore this became a triple skin construction whereby a Euroclad trapezoidal wall system was overclad in Rodeca, this allowed us to isolate the Rodeca to the external envelope and protect the internal works. Fire Barriers were included within the cavity to the face of the trapezoidal cladding in order to give surity of fire performance.

Products

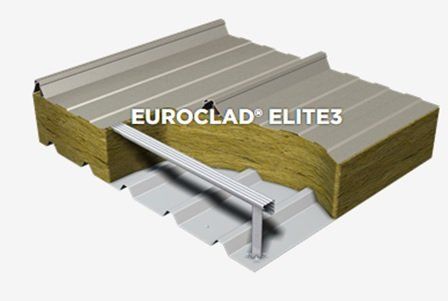

Euroclad SF500 Roof System
Paroc Insulated Cladding Panels on Bespoke Substructure

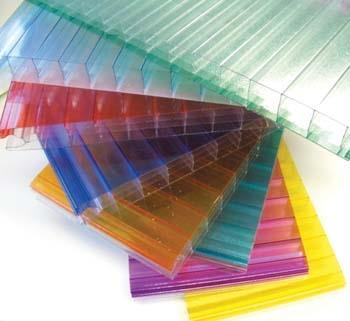

Rodeca Polycarbonate Panels on Bespoke Substructure
Rodeca Polycarbonate Panels on Helping Hand Bracketry
Paroc Fire Panels
